彩鋼復合板，是潔凈室中常見的圍護結構，是用彩涂板和不銹鋼板材等作為面材，以巖棉、鋁蜂窩、聚氨酯、紙蜂窩、玻美板等作為芯材，復合而成的復合板，具有防塵、、耐腐蝕、防銹、防靜電等效果，廣泛應用于醫療、電子、食品、生物、化妝品、航空航天以及精密儀器等潔凈室環境。按照制作工藝，分為手工板和機制板。

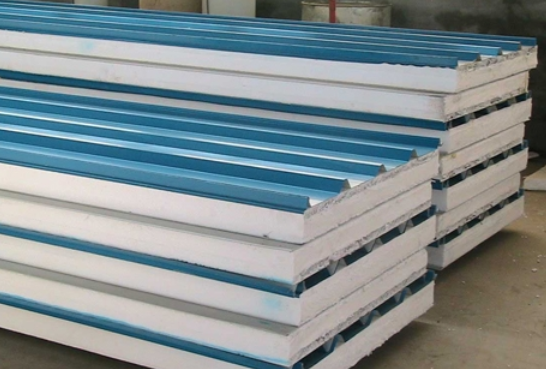

Color steel composite board is a common enclosure structure in clean rooms, which is made of color coated board and stainless steel plate as surface materials, and rock wool, aluminum honeycomb, polyurethane, paper honeycomb, glass fiber board, etc. as core materials. The composite board has dust prevention, antibacterial, corrosion resistance, rust prevention, anti-static and other effects, and is widely used in clean room environments such as medical, electronics, food, biology, cosmetics, aerospace, and precision instruments. According to the production process, it is divided into handmade boards and machine made boards.

1.產品規格：

1. Product specifications:

寬度：標準板：980mm、1180mm，可定制非標準板；

Width: Standard board: 980mm, 1180mm, can be customized with non-standard boards;

厚度：50、75、100、120，150mm ；

Thickness: 50, 75, 100, 120150mm;

2.材料選用：

2. Material selection:

a. 上/下表面采用厚度0.3~1.0mm寶鋼板或武鋼板；

a. The upper/lower surfaces are made of 0.3-1.0mm thick Baosteel or Wuhan steel plates;

b. 根據客戶需求選用不同種類的芯材，用熱固化膠在連續成型機內熱加壓復合而成超輕建筑板材；

b. Select different types of core materials according to customer needs, and use thermosetting adhesive to heat press and composite into ultra-light building panels in a continuous molding machine;

c. 側邊鋼帶采用厚度0.5mm鍍鋅板。

c. The side steel strip is made of galvanized sheet with a thickness of 0.5mm.

3. 主要特點：

3. Main features:

a、 輕型、新穎、造型美觀，表面無需要裝飾。

a. Lightweight, novel, and aesthetically pleasing, with no need for decoration on the surface.

b、 具有強度、剛度、穩定性、抗沖擊、抗震性能良好的特性，并具有良好的抗腐性、耐大性，可用于圍護、重量結構，一般房屋不用梁柱。

b. It has the characteristics of strength, stiffness, stability, impact resistance, and good seismic performance, as well as good corrosion resistance and large resistance. It can be used for enclosure and weight structures, and generally houses do not require beams and columns.

c、 保溫、隔熱、隔音性好。

c. Good insulation, heat insulation, and sound insulation.

d、 預制裝配化程度高，施工周期可較傳統縮短40%以上。

d. The degree of prefabricated assembly is high, and the construction period can be shortened by more than 40% compared to traditional methods.

手工板可按需方工程要求定尺生產，組合安裝，不僅能大量減少建筑物的基礎工程和結構工程費用，且能多次拆裝，施工安裝方便快捷，綜合效益十分顯著。如果對防火性能有特殊要求，還可以選用防火板。

Handmade boards can be produced to specific lengths and installed in combination according to the engineering requirements of the demand side. This not only greatly reduces the cost of building foundation and structural engineering, but also allows for multiple disassembly and assembly. The construction and installation are convenient and fast, and the comprehensive benefits are very significant. If there are special requirements for fire resistance, fire-resistant panels can also be selected.
